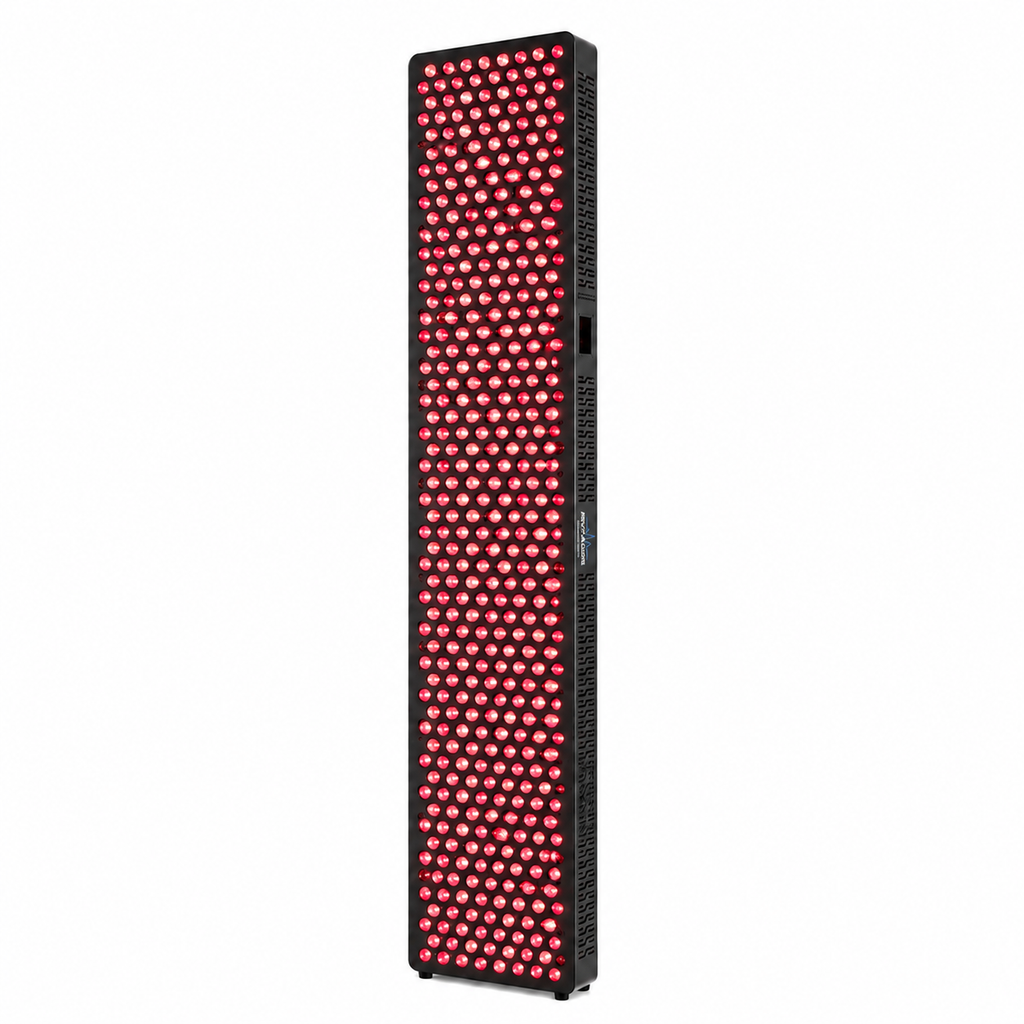

  • X-Ascend Panel red light panel with multi-wavelength LED array, product view 1

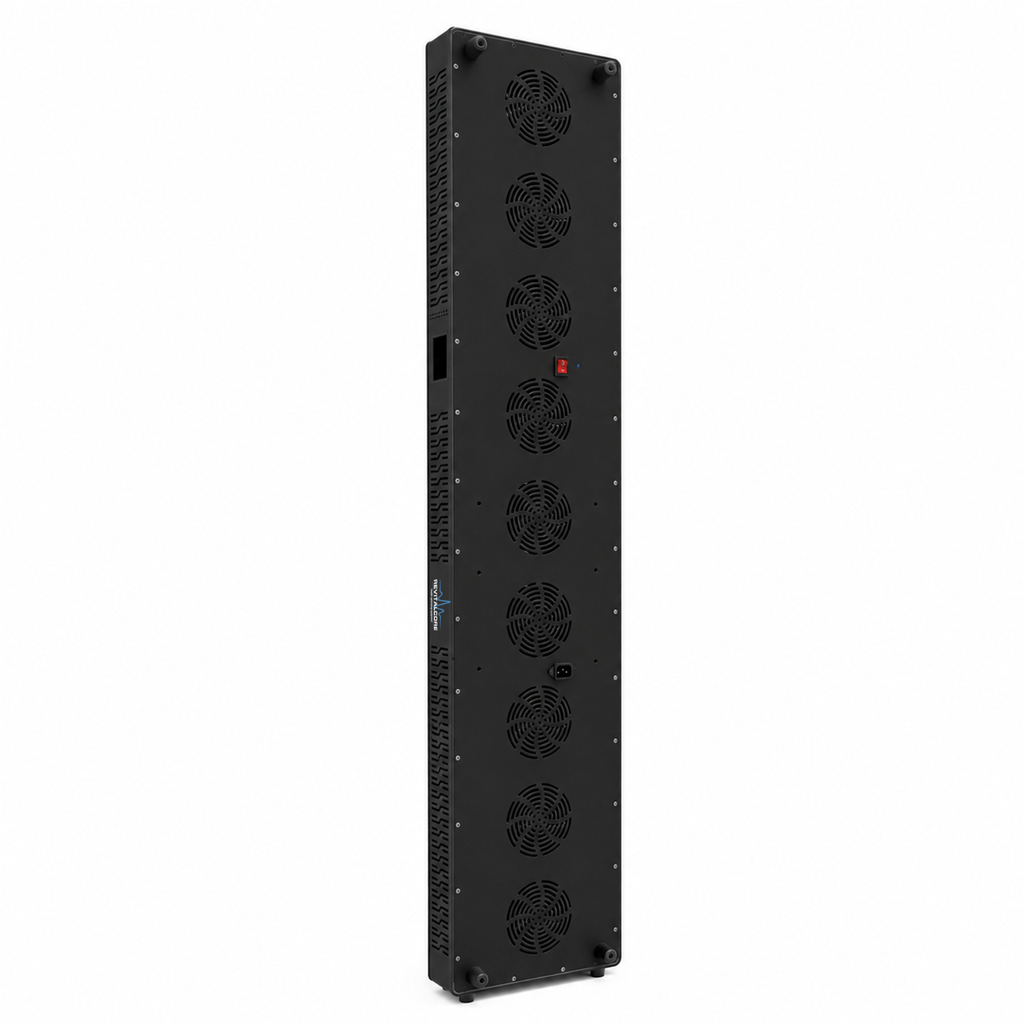

  • X-Ascend Panel red light panel with multi-wavelength LED array, product view 2
X-Ascend Panel

X-Ascend Panel

$2,499.00
$2,499.00 $2,999.00

The RevitalCore X-Ascend is a large vertical red light panel designed for broad illumination without the footprint of an enclosed bed. Its streamlined format, connected controls and multiple stand configurations make it a versatile option for professional facilities and dedicated home wellness spaces.
Color
Stand
  • 576 Dual-Chip LEDs
    A large LED array supports broad, consistent illumination across the panel’s vertical treatment surface.
  • Eight-Wavelength Output
    Includes 630, 650, 660, 670, 810, 830, 850 and 1060 nm wavelengths.
  • Touchscreen Control Interface
    Provides direct access to the panel’s session and output controls.
  • Individual Wavelength Pulse Control
    Supports independently adjustable pulse frequencies from 1–9,999 Hz.
  • Individual Wavelength Dimming
    Adjust each wavelength independently from 1–100% output.
  • Dual-Angle Lens System
    30° and 60° lenses support focused and broader light distribution.
  • 2.4 GHz Remote Controller Support
    Supports compatible 2.4 GHz remote operation.
  • Bluetooth Connectivity
    Bluetooth support provides compatible wireless connectivity.
  • LED array: 576 dual-chip LEDs
  • Input voltage: 100–240V AC
  • Working current: 8.0A ±5% at 220V / 13.2A ±5% at 110V
  • Frequency: 50/60 Hz
  • Lens angles: 30° and 60°
  • Light density at 6 in: All wavelengths ≥1400 W/m²; red ≥150 W/m²; near-infrared ≥1200 W/m²
  • Dimensions: 1820 × 300 × 65 mm
  • Wavelengths: 630, 650, 660, 670, 810, 830, 850 and 1060 nm
  • Pulse frequency: 1–9,999 Hz, individually adjustable by wavelength
  • Dimming: 1–100%, individually adjustable by wavelength
  • Shell material: Iron
  • Gross weight: 21 kg ±0.5 kg
  • Actual power: 960W ±10%
  • Controller support: 2.4 GHz remote controller
  • Connectivity: Bluetooth
  • Health Canada Certified
  • FDA
  • RoHS
  • CE EMC & LVD
  • FCC
  • TGA
  • MDL
  • X-Ascend Panel
  • Power cord with plug
  • User manual
  • Protective glasses
  • Remote controller

All LED panels offered on our website are custom ordered. Production takes approximately 30 calendar days after order confirmation. This estimate does not include shipping or transit time. Free worldwide shipping is included with LED panel orders. Delivery times vary by destination. Any applicable customs duties, taxes, or import charges are not included unless expressly stated otherwise.
