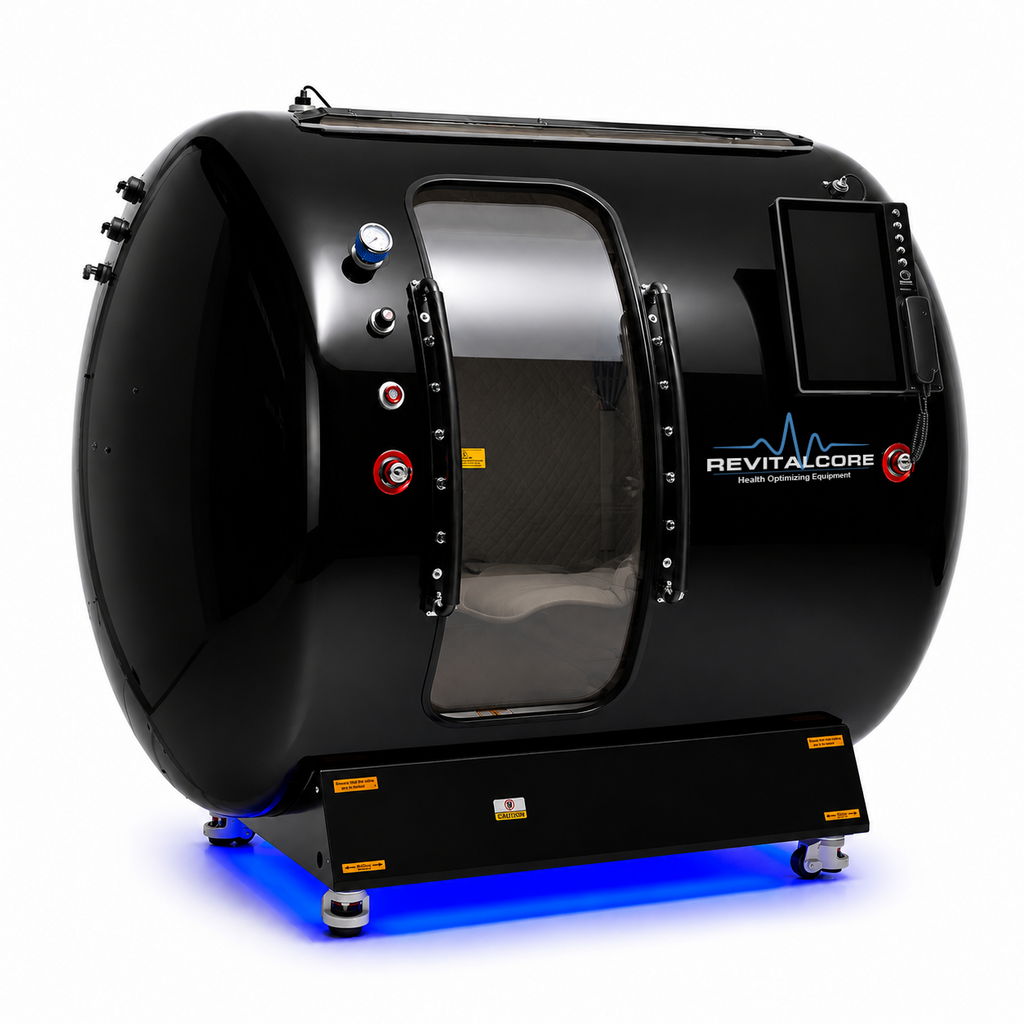

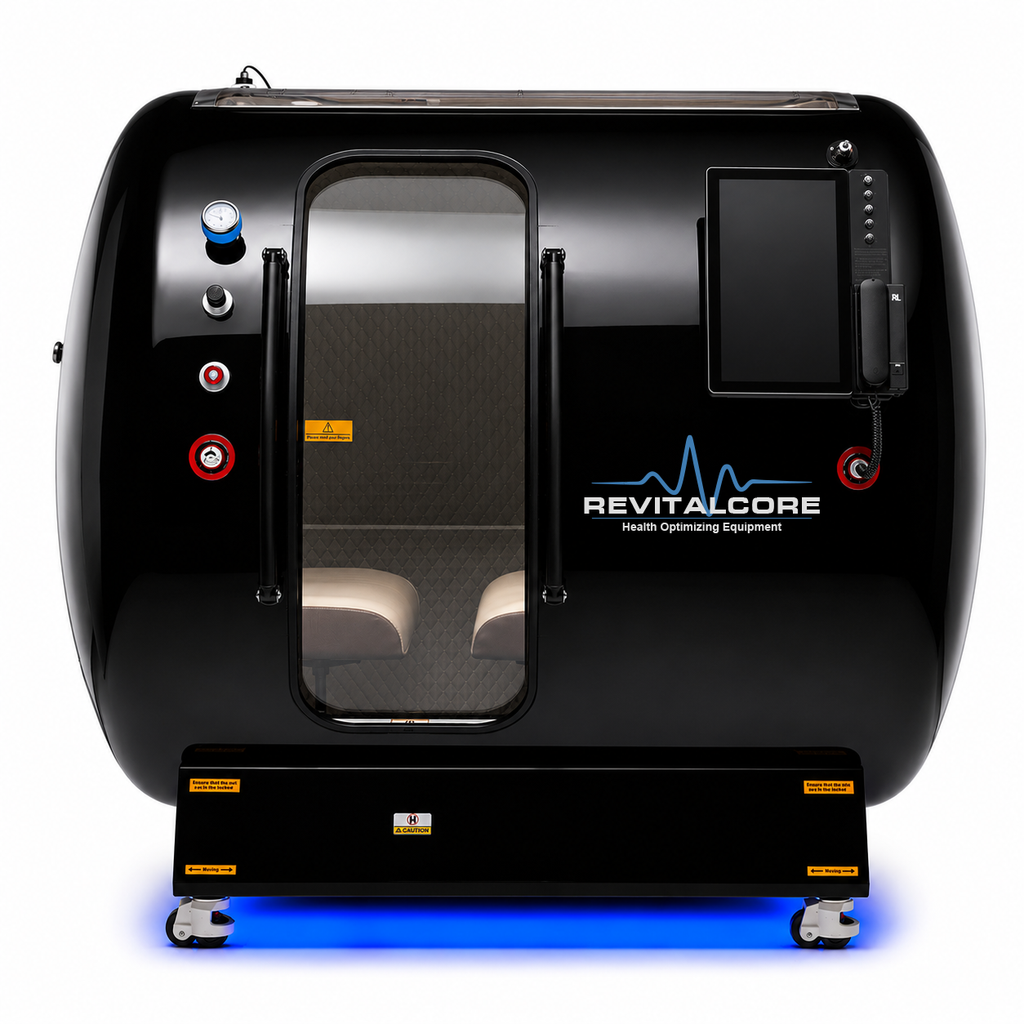

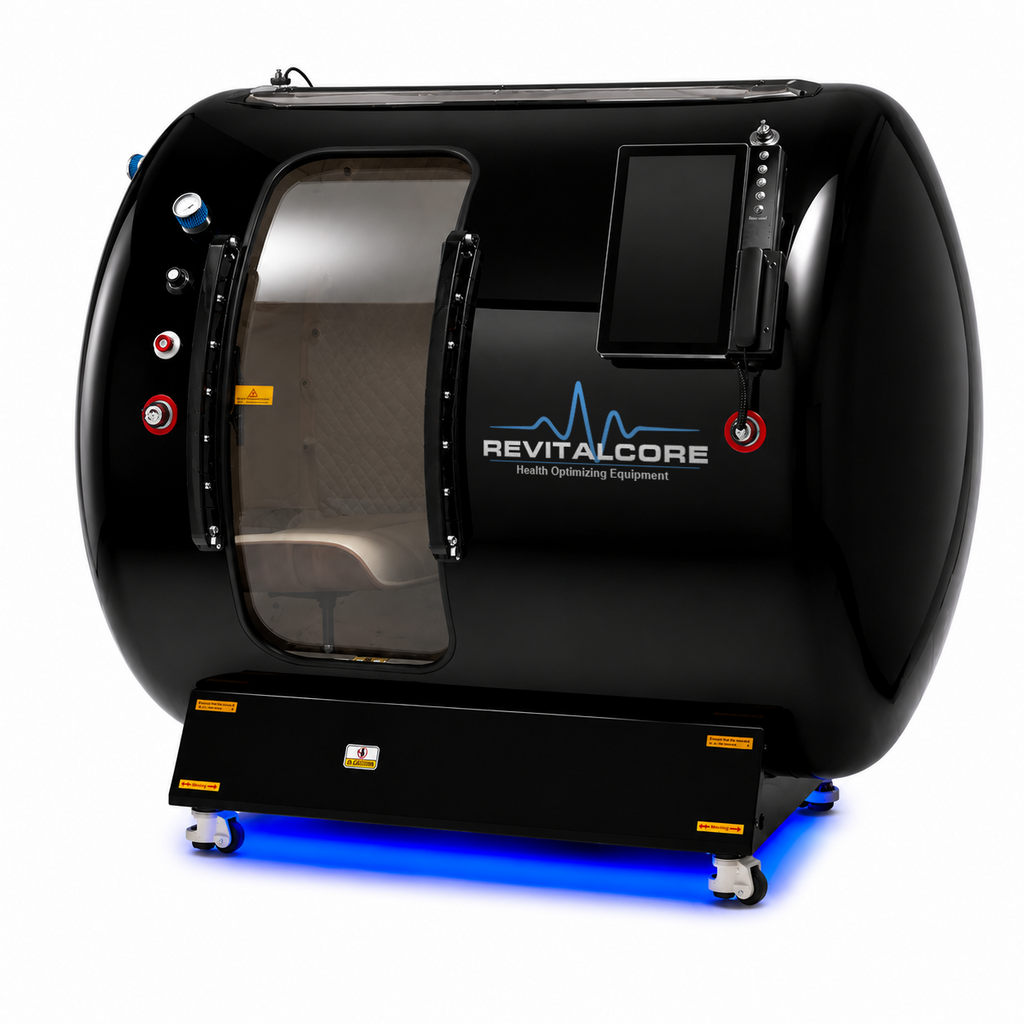

Summit Duo Hyperbaric Chamber

• Spacious Multiplace Chamber
  A generous 64-inch diameter interior provides a comfortable treatment environment for multiple occupants while maximizing accessibility and comfort.
• Adjustable Therapy Pressures
  Choose between 1.3, 1.5, 1.8, or 2.0 ATA using an intuitive one-touch control system for flexible treatment protocols.
• High-Purity Oxygen Delivery
  Delivers oxygen concentrations of up to 95% through facemask or nasal cannula for efficient oxygen administration.
• Commercial-Grade Construction
  Manufactured using 4mm 304 stainless steel for exceptional durability, structural integrity, and long-term reliability.
• Integrated Smart Control System
  A centralized control console simplifies chamber operation while providing intuitive monitoring of system functions throughout every session.
• Quiet Operation
  Engineered with low-noise pressure regulation and premium compressor technology to create a more comfortable treatment environment.
• High-Capacity Oxygen Generation
  Continuous-flow oxygen generation provides consistent oxygen delivery without requiring external oxygen cylinders.
• Dual Air Compressor System
  Two industrial-grade 120L air compressors maintain stable chamber pressure while supporting reliable daily operation.
• Comfortable Interior Options
  Available with premium aircraft-style seating or optional folding chair configurations to accommodate various treatment environments.
• Integrated Environmental Control
  Built-in dehumidification and optional climate control help maintain a comfortable cabin environment throughout every session.
• Enhanced Safety Systems
  Multiple integrated safety features, including emergency pressure management, grounding protection, and redundant monitoring systems, provide dependable operation for both practitioners and users.

• Maximum Operating Pressure
  2.0ATA
• Selectable Pressure Setting
  1.5, 1.8, 2.0ATA
• Chamber Dimensions
  64"D x 79 "L x 69"H
• Chamber Material
  4mm 304 Stainless Steel
• Oxygen Purity
  Up to 95%
• Oxygen Delivery
  Face-mask or Nasal Cannula
• Oxygen Flow
  Up to 20 LPM Total
• Air Compressors
  Dual 120L Compressors
• Oxygen Generators
  Dual 10 LPM Integrated Oxygen Concentrators
• Smart Controller
  Integrated LCD Control System
• Operating Noise
  Less than 60 db
• Power
  1300W Controller, Optional 500W Climate Unit
• Operating Voltage
  110-120V (220 Available)

• CE
• ISO 9001
• ISO 13485

• Custom Color (+$3,500.00)
• Red Light Panel (+$1,000.00)
• Electric Aviation Seat (+$2,000.00)
• Starlight Ceiling (+$1,500.00)

Shipping and installation are quoted separately and are not calculated at checkout. Select Get More Info to request a complete quotation. After we confirm the delivery destination and any installation requirements, we will provide the equipment total, shipping costs, and any requested installation charges by email.
