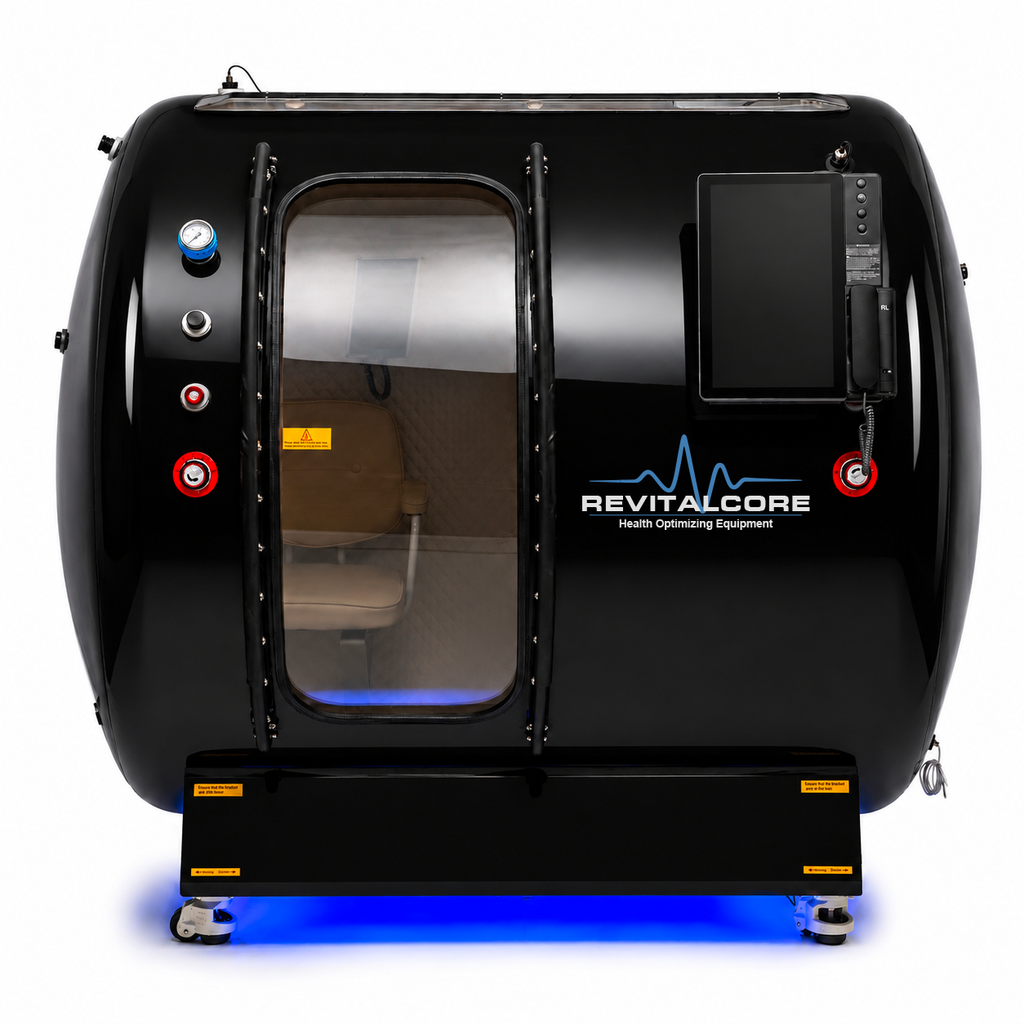

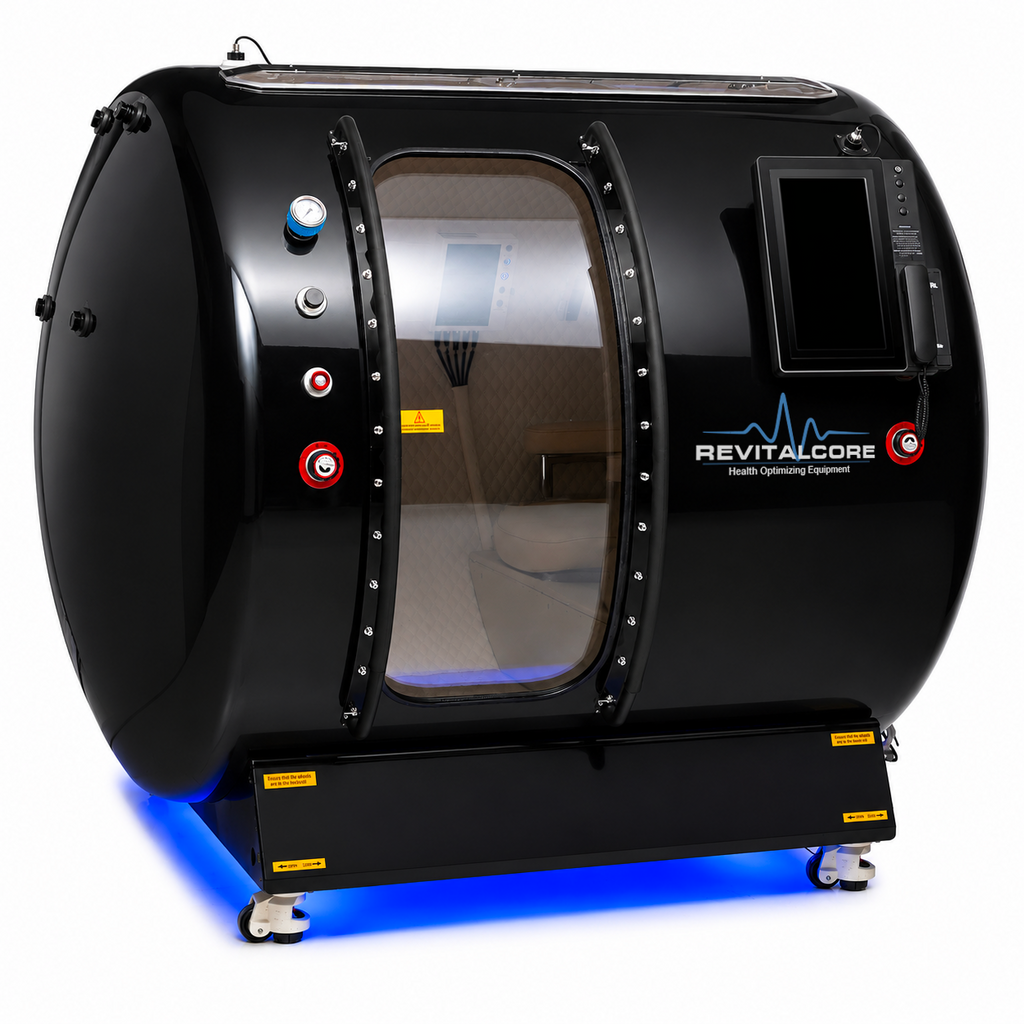

Summit Hyperbaric Chamber

• Compact Multiplace Design
  A spacious 44-inch diameter walk-in chamber comfortably accommodates two users while minimizing installation space.
• Adjustable Therapy Pressures
  Select between 1.3, 1.6, 1.8, and 2.0 ATA using an intuitive one-touch control system for flexible treatment protocols.
• High-Purity Oxygen Delivery
  Provides oxygen concentrations of up to 95% through facemasks or nasal cannulas using an integrated oxygen generation system.
• Commercial-Grade Stainless Steel Construction
  Manufactured using 4mm 304 stainless steel for exceptional durability and long-term reliability.
• Integrated Smart Control Console
  A centralized LCD control system provides intuitive operation and real-time monitoring throughout every treatment session.
• Dual Air Compressor System
  Two industrial-grade 120L air compressors deliver stable chamber pressure and dependable daily performance.
• Continuous Oxygen Generation
  Integrated oxygen concentrators eliminate the need for external oxygen cylinders while providing a continuous oxygen supply.
• Quiet Operation
  Low-noise pressure management and premium compressor technology maintain operating noise below 60 dB for a more comfortable treatment environment.
• Spacious Sliding Entry Door
  A large polycarbonate sliding door provides convenient access while allowing abundant natural light into the chamber.
• Integrated Environmental Controls
  Built-in dehumidification helps maintain a comfortable interior environment, with an optional climate control system available for enhanced temperature management.
• Interior & Exterior Controls
  Operate and monitor the chamber from both inside and outside, providing convenience for both practitioners and occupants.
• Enhanced Safety Systems
  Equipped with emergency pressure management, grounding protection, redundant compressor systems, and multiple integrated safety features for dependable operation.

• Maximum Operating Pressure
  2.0ATA
• Selectable Pressure Setting
  1.5, 1.8, 2.0ATA
• Chamber Dimensions
  44"D x 79 "L x 69"H
• Chamber Material
  4mm 304 Stainless Steel
• Oxygen Purity
  Up to 95%
• Oxygen Delivery
  Face-mask or Nasal Cannula
• Oxygen Flow
  Up to 20 LPM Total
• Air Compressors
  Dual 120L Compressors
• Oxygen Generators
  Dual 10 LPM Integrated Oxygen Concentrators
• Smart Controller
  Integrated LCD Control System
• Operating Noise
  Less than 60 db
• Power
  1300W Controller, Optional 500W Climate Unit
• Operating Voltage
  110-120V (220 Available)

• CE
• ISO 9001
• ISO 13485

• Custom Color (+$3,500.00)
• Red Light Panel (+$1,000.00)
• Electric Aviation Seat (+$2,000.00)
• Starlight Ceiling (+$1,500.00)

Shipping and installation are quoted separately and are not calculated at checkout. Select Get More Info to request a complete quotation. After we confirm the delivery destination and any installation requirements, we will provide the equipment total, shipping costs, and any requested installation charges by email.
